SVS Ultra Centre Centre Speaker

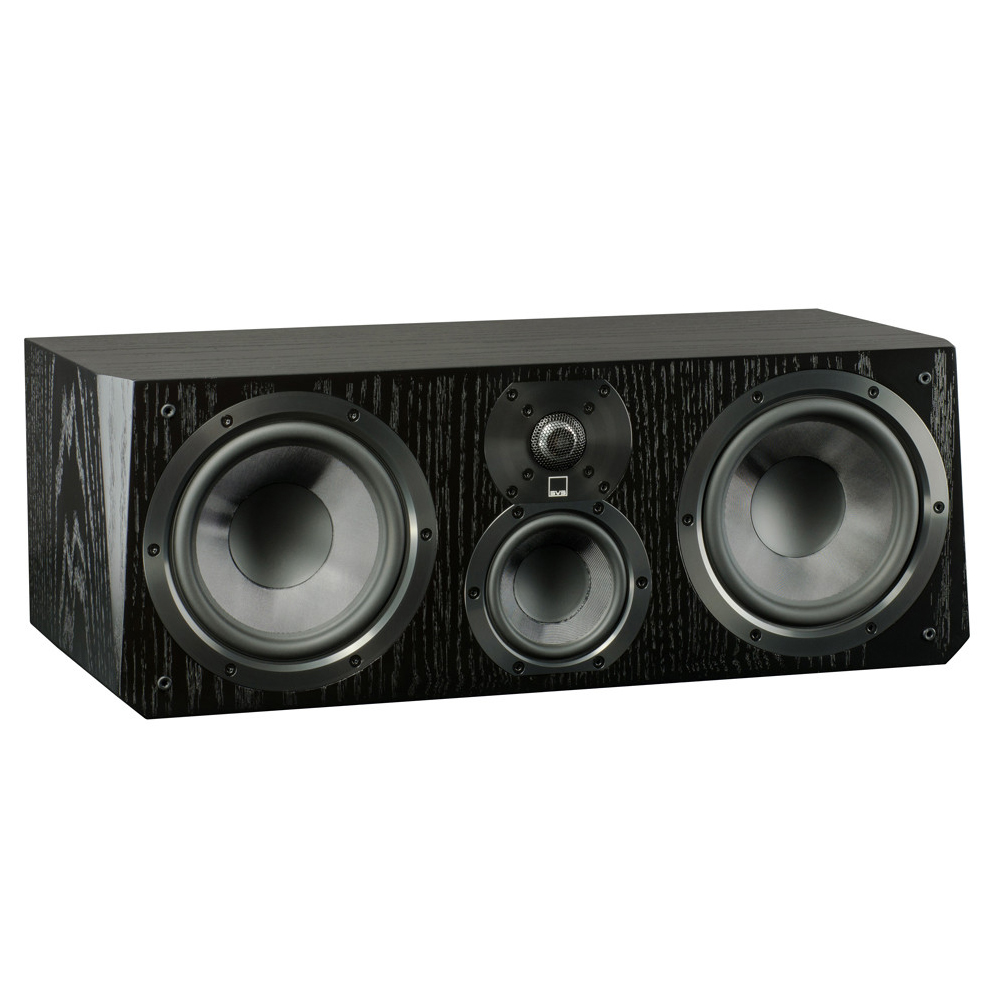

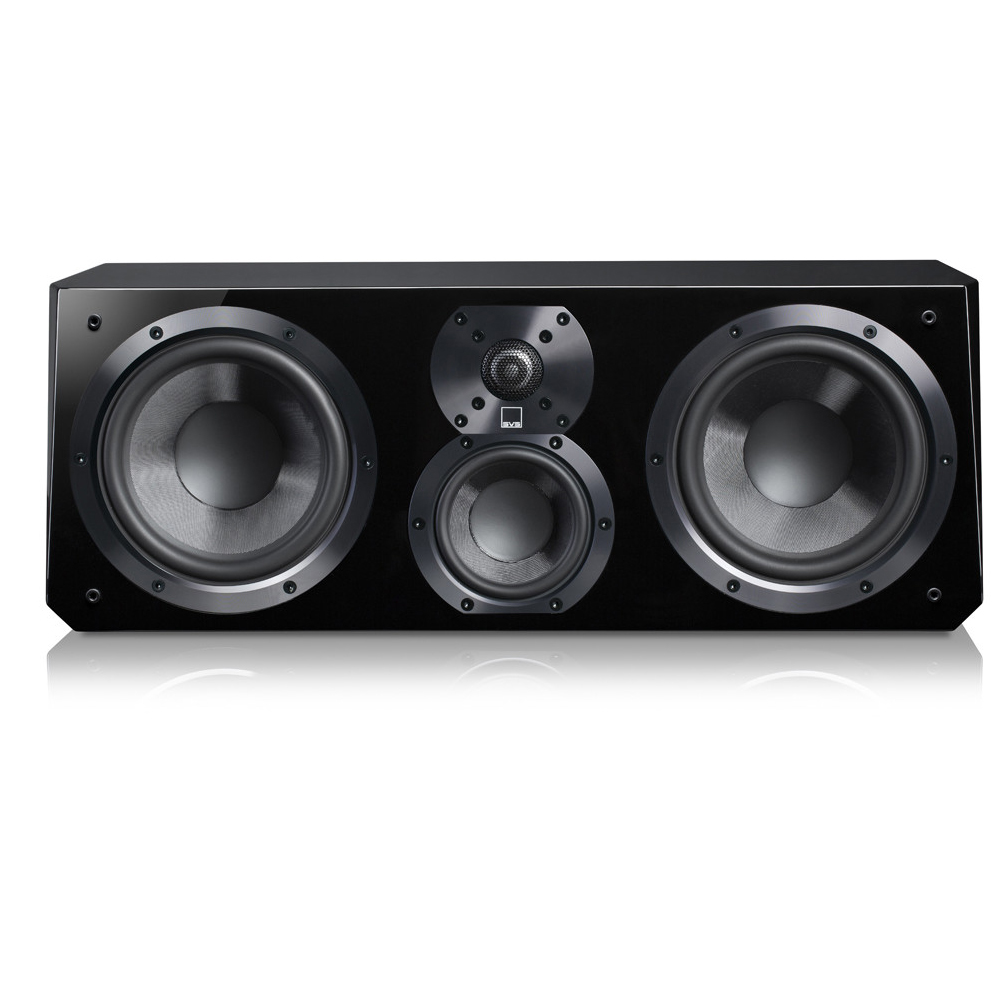

Available in premium-grade piano gloss black and real black oak veneer finishes and handsomely styled with a swept back profile and striking edge treatments, the Ultra Centre will complement any high-end home cinema.

Dramatic Styling Yields Sonic Benefits

The Ultra Centre cabinet design yields numerous sonic benefits. The non-parallel cabinet panels reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response. Even the grille design is FEA-optimised to maximise acoustic transparency.

SVS Drivers Extreme Performance And Uncompromised Fidelity

The proprietary SVS drivers utilise the finest materials and design features to ensure the highest sound quality and performance. The Ultra Centre driver array features a 1″ aluminum dome tweeter, a 4″ mid-range driver, and dual 6.5″ woofers. The vertically aligned tweeter and mid-range improves horizontal axis polar response with reduced lobing and comb filtering for a smooth frequency response and excellent dialogue intelligibility at all listening positions.

1” Aluminum Dome Tweeter

• Utilises an FEA-optimised diffuser which delivers a very open ‘airy’ presentation and extremely unveiled highs
• Delivers a sound stage so pure and free of artifacts that you’ll swear the performers are in the room

4” Mid-Range Drivers

Composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.

• Vented voice coil former to minimise air compression artifacts at high drive levels.
• Aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
• Cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.

6.5” Woofers

Delivers amazing dialogue clarity and detail with powerful and room-filling presence and projection:

• Long-stroke motor and suspension for low distortion and high output capability
• Heavy duty voice coil for enhanced power handling and thermal management
• Vented voice coil former to minimise air compression artifacts at high drive levels
• Aluminum shorting ring to reduce gap inductance, lower distortion and improve high frequency response

Soundmatch Crossover – Intelligently Designed For Your Listening Room

The SoundMatch 3-way crossover features premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards to ensure pure signal transmission. Careful selection of the crossover frequency and slopes results in a smooth off-axis polar response, outstanding phase coherency and a stable sound stage. Naturally the SoundMatch crossover network also features premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards to ensure pure signal transmission.

Key Features
