Silent Angel Bonn N8 High-End Audio Network Switch

Key Features

• Eight AUDIO GRADE 100 / 1000 Base-T Gigabit Ethernet Ports
• Superior main clock accuracy
• Customized Silent Angel Noise Absorber (SANA)
• Two noise isolator for main power circuit
• Two noise isolator for clock generator circuit
• Medical Grade power adaptor

Precise Control Of The Clock Signal

Silent Angel specialized TCXO (Temperature Compensation crystal Oscillator) is highly accurate. The accuracy is 0.1ppm, which is much higher than normal crystal and higher than a normal one, N8 is able to generate more accurate network signal and provide more stable music data transmission.

Reformed Main Board Design

Two electrical noise isolation circuits, with noise rejection rate 17dB, for power circuit. Two electrical noise isolation circuits, with noise rejection rate 20dB, for clock generation circuit.

High Permeability EMI Absorber

To reduce noise from digital circuits, with specially chosen EMI absorber to absorb the EMI (Electromagnetic Interference) from the inner digital circuit. It assures N8 works more stable and generate more clear network signals

Significant Value of N8

Innovation and creative technologies are the core value of N8. The resulting improvements can be seen and proven on the signal measurements. Engineer in Thunder Data had proven N8 network signal is much better than other general network switch.

Network Jitter Improvement

The quality of network signal from N8 is 90% better than that of a general switch in jitter measurements.

Purified Power Signal

Noise filter in power circuit provides purified power signal and network signals

Appearance

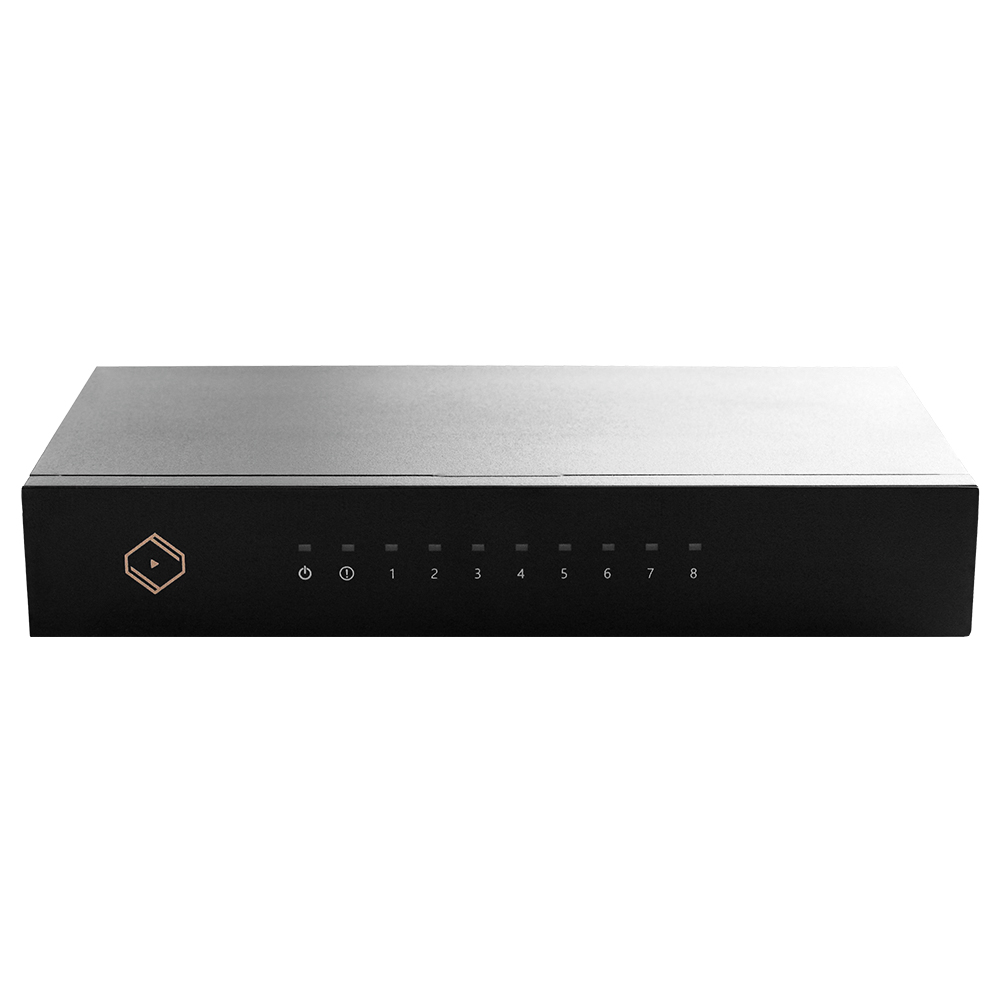

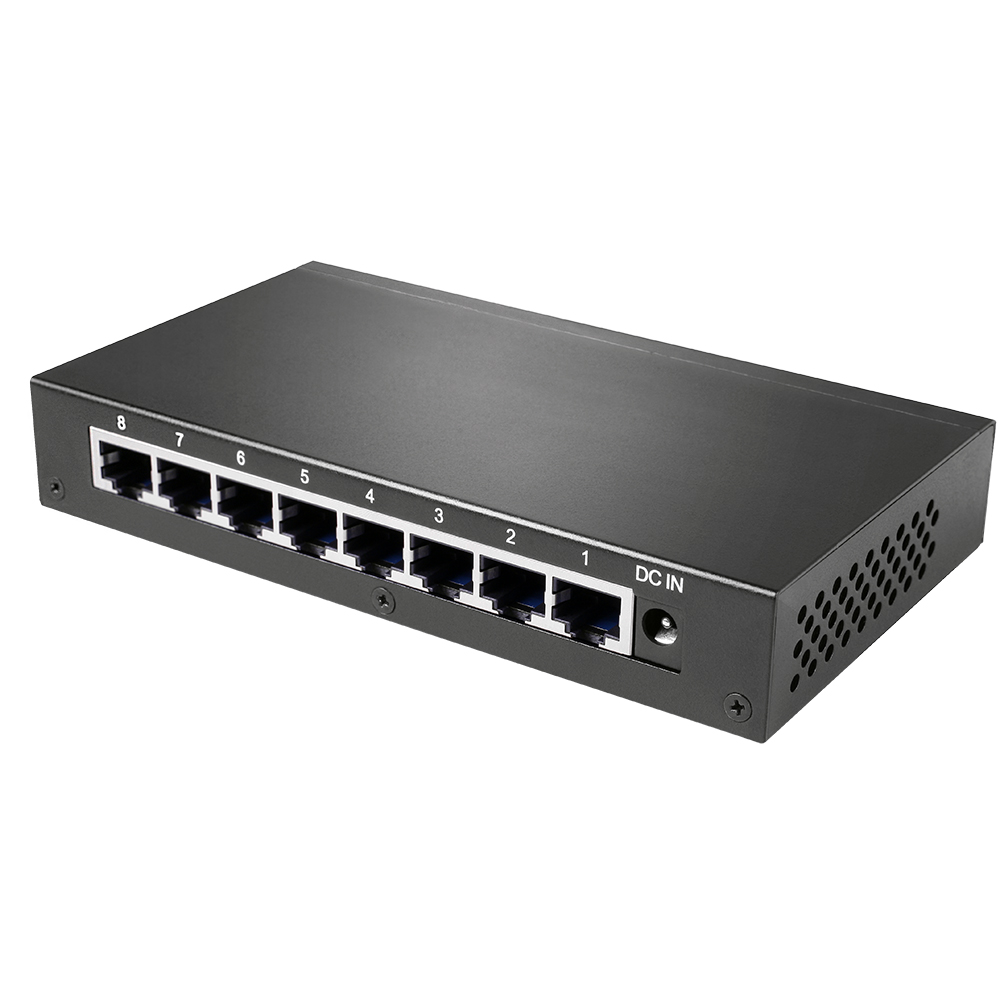

Light indicators at front panel including power, alarm, link status and link speed of 8 ports. Make it convenient to know the status of network devices. Eight audio grade 100/1000 Base-T gigabit Ethernet ports at rear panel, suitable for your network audio devices and all your home network appliances.

Equipped with exchangeable AC plug and medical grade power adaptor, the power efficiency level is as high as VI and no load power consumption < 0.075W. Complete protection circuit design featuring short circuit, over load, over voltage protection.

Key Specification

BASIC

• Interface: 8 x Audio Grade 100 / 1000 Base-TLED, 1 x Power LED (Green), 1 x Alarm
• LED: (Red) 8 x Port Status LEDs (Link / Activity)

ADVANCED

• Main Clock: Accuracy
• EMI Absorber: Noise Isolator0.1 ppm at 25 °CSilent Angel Noise Absorber (SANA)
• Noise Isolator: Main Power Circuit: 17.78 dB @ 100MHz x2, Clock Gen. Circuit: 20.79 dB @ 100MHz x2
• Power Adaptor: Medical Grade Power Adaptor

POWER AND CABLE

• Product Power Input: External Power 5VDC at 1A
• Power Consumption: Max. 5W
• Product Dimensions: 154.5 x 85 x 26 mm
• Case Material: Metal in Black
• Package Dimensions: 244 x 214 x 66 mm
• Weight: 1.2 kg

ENVIRONMENTAL

• Temperature Operating 0 ~ 35 °CStorage -20 ~ 70 °C
• Humidity Operating: 10% ~ 90% RH (non-condensing)Storage: 5% ~ 95% RH (non-condensing
