Graham Audio LS5/5 Stand Mount Speakers

Straight away you’ll notice that the bass and mid-range drivers are mounted behind slots on the front panel. This feature is highly unusual today, but it works to control the off-axis response of the drive units which results in a smoother response through the crossover regions in typical listening environments. Not surprisingly, we get a lot of questions about this, so we have written an in-depth article explaining how the slots work.

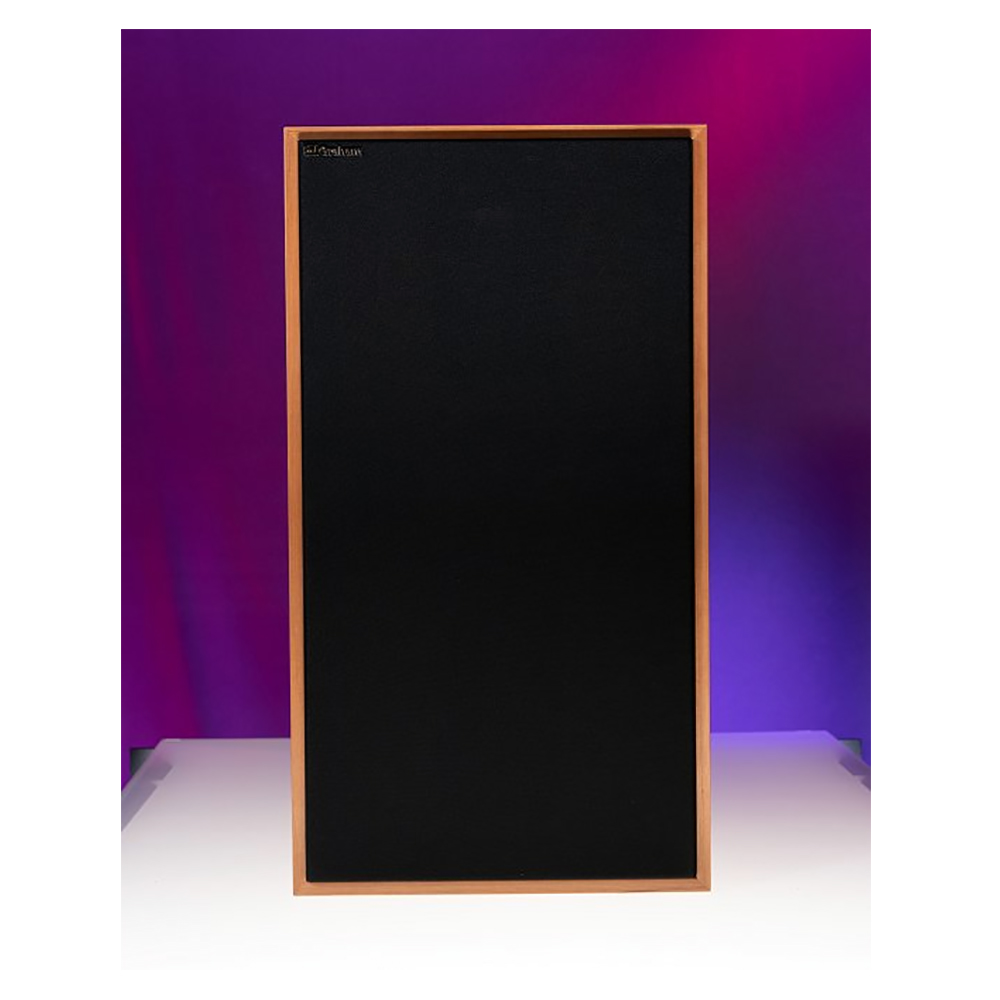

Naturally, this is a BBC “thinwall” cabinet, where the relatively thin panels are mass-loaded to ensure that resonances are moved away from the mid-range region, and Rockwool provides air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.

Key Features

• System: 3 Way, reflex loading
• Enclosure: Thin wall damped construction
• Frequency Response: 40Hz to 20kHz, ±2dB
• Nominal Impedance: 8Ω
• Sensitivity: 88dB SPL (2.83V, 1m)
• Maximum Output: Over 104dB for a pair at 2m
• Bass/Mid-Range: 300 mm long throw / 200mm
• Tweeter: 25 mm soft dome tweeter
• Recommended Amplifier Power: 50 to 250 watts unclipped programme
• Dimensions (WxHxD): 36 x 70 x 48 cm
• Weight: 35.5 kg (each)
